概述Brief introduction

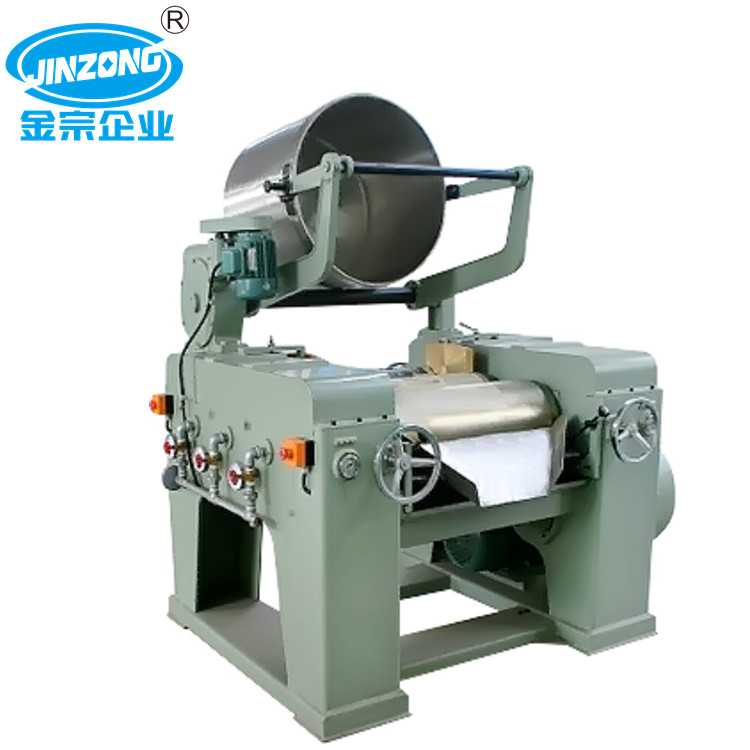

三辊研磨机主要用于各种颜料、肥皂、粉底霜等膏状物料的研磨。特别适用粘度高,细度要求好的产品。该机表面具有高硬度和耐磨性,并有冷却装置,保证连续工作。
The three roller grinder is mainly used for grinding various paste materials such as pigments, soap and foundation cream. It is especially suitable for products with high viscosity and fine requirement. The machine surface has high hardness and wear resistance, and has a cooling device to ensure continuous work.
性能Performance
本机主要用于各种油漆、油墨、塑料、颜料、食品、唇膏等膏状物料,特别适用于研磨分散粘度高而粒度要求细的产品,辊筒采用冷硬合金铸铁离心浇注,晶相紧密,强度高,表面具有高硬度和耐磨性,并设有冷却系统。该机通过转动手轮调节水平方向的三根辊筒之间的间隙及辊筒表面相互挤扎和不同速度摩擦达到研磨分散的效果。
This machine is mainly used for all kinds of paste materials, such as paint, ink, plastic, pigment, food, lipstick, etc. it is especially suitable for grinding and dispersing products with high viscosity and fine grain size. The roller is made of chilled alloy cast iron by centrifugal casting, with strong crystalline phase, high strength, high hardness and wear resistance on the surface, and a cooling system. The machine adjusts the clearance between three rollers in horizontal direction by turning handwheel, squeezes and rubs each other on the surface of the rollers and achieves the effect of grinding and dispersion.
技术参数Technical Parameters
规格Type | 辊筒直径Roller diameter(mm) | 辊筒工作面长度Working length (mm) | 辊轮速度Roller speed | 电动机Motor(kw) | 外形尺寸Dimension(mm)(L*W*H) | 重量Weight(kg) | ||
慢辊Slow(r/min) | 中辊 Middle(r/min) | 快辊Fast(r/min) | ||||||
S65 | 65 | 125 | 26 | 70 | 145 | 0.55 | 410*550*450 | 85 |
S150 | 150 | 300 | 26 | 70 | 145 | 2.2 | 1010*930*1000 | 550 |
S260 | 260 | 675 | 19.1 | 54.5 | 155.3 | 7.5 | 1645*1350*1100 | 2200 |
S405 | 405 | 810 | 12.2 | 37 | 116 | 15 | 2100*1950*1350 | 5000 |
SM405 | 405 | 810 | 14.25 | 44 | 135.5 | 15 | 2290*1950*1350 | 5200 |
