丙烯酸树脂反应釜
Acrylic Acid Resin Reactor
产品介绍：
反应釜广泛应用于化工、医药、染料、农药、有机合成、石油、食品添加剂和国防工业及科学研究中的反应、蒸发、浓缩、合成、萃取、聚合、矿化等。
Production Description
The reaction kettle is widely used in the reaction, evaporation, concentration, synthesis, extraction, polymerization and mineralization of chemical industry,medicine, dye, pesticide, organic synthesis, petroleum, food additives and defense industry and scientific research.

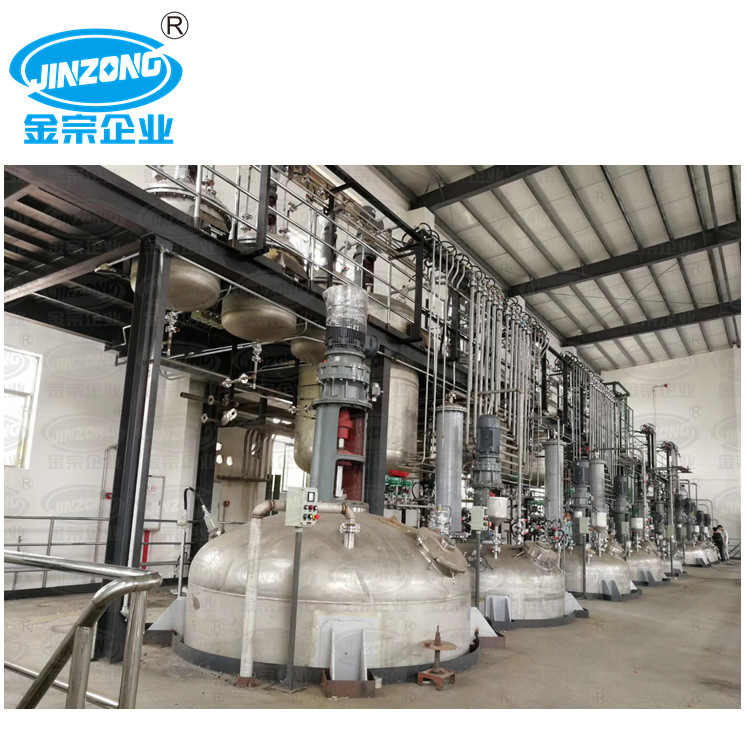

金宗可以根据客户要求，为客户定制各类树脂、乳液合成的反应釜及成套设备；我们在提供单机合成设备及成套醇酸树脂生产线时，将根据用户特定的工艺要求，实现温度、压力、单体及助剂添加时间的自动控制，针对不同物料特性和工艺，选择合适的加热、冷却以及搅拌方式，确保有效控制反应过程，实现最大化的转化效率。
Jinzong machinery can customize various types of resin and emulsion synthesis reactors and complete sets of equipment according to customer requirements. When we provide stand-alone synthetic reactor and complete sets of alkyd resin production lines, the reaction kettle can realize automatic control the temperature, pressure, and temperature according to user-specific process requirements,and automatic control of monomer and additive addition time, select appropriate heating, cooling and stirring methods for different material characteristics and processes to ensure effective control of the reaction process and maximize conversion efficiency.
产品特性：
1. 真空上料、安全便捷；
2. 温控系统加热稳定可靠；
3. 自动控制系统按照工艺要求精确执行；
4. 主反应釜严格按照国家标准制作，安全可靠。
Products Characters
1. Vacuum feeding materials, safety and convenient;
2. The stable and reliable temperature heating & control system;
3. The automatic control system is accurately executed according to the process requirements;
4. The main reaction kettle is made in strict accordance with national standards, safety and reliable.
反应釜选型参考表：
Reactor Model
| 组成Composition | 说明Instructions |
| 规格（L）Specification | 10~50000（L） |
| 设计压力 Design Pressure(Mpa) | 常压或带压Atmospheric pressure or under pressure |
| 材质Material | 碳钢、不锈钢、搪瓷、石墨 Carbon steel,stainless steel,enamel,graphite |
| 加热方式Heating Forms | 夹套热载体电加热、外半管蒸汽加热、外半管导热油加热、热水加热、红外加热Electrical heating with medium in jacket,external half-pipe coil steam heating,external half-pipe conduction oil heating,hot water infrared heating,etc |
| 冷却方式 Cooling Forms | 夹套或内盘管冷媒冷却Refiigeration medium in the inneral pipe coil or jacket |
| 搅拌功率Blending Power | 根据物料粘稠度、液固比、液体比重、固体比重、固体颗粒度、转速、桨叶形式、有无固定挡流板或内盘管等因素来选型Model selection is made according to material viscosity,liquid-solid ratio,liquid specific gravity,solid specific gravity,solid granularity,rotation speed,paddle type,with or without baffle or internal coil |
| 搅拌桨叶形式Stirring Blade Forms | 锚式、框式、平浆式、斜浆式、螺带式、涡轮式、推进式、也可以多种形式复合Anchor type,frame type,flat paddle type,pitched paddle type,ribbon type,turbo type,pusher type and multiple compound type |
| 轴封 Seal | 机械密封或填料密封 Mechanical seal or stuff packing seal |
| 内表面处理Inner surface Treatment | 抛光和不抛光Polished or no polished |
| 出料阀门 Dishcarge Valve | 法兰式球阀、上、下展阀或其他阀门Flanged ball valves,open downward discharge valve and others |
| 工艺管口开孔Technological Pipe Hole | 人孔、视镜、蒸馏口、物料进口、压力表口、测温口、充N2口、出料口、热载体进口、冷却液进出口、测温口、取样口、排空口、以上根据工艺要求增加或减少Manhole,signhglass,distillation mouth,imported materials,pressure gauge port,temperature mouth,mouth filling N2,discharge nozzle,hot-carrier import,sample nozzle,pressure relief port,according to the process above requirements increase or discrease. |
智能工厂·金宗制造——金宗助力企业改善生产运营效率！
Intelligent Factory · Jinzong Manufacturing - Jinzong helps companies improve production & operation efficiency!
