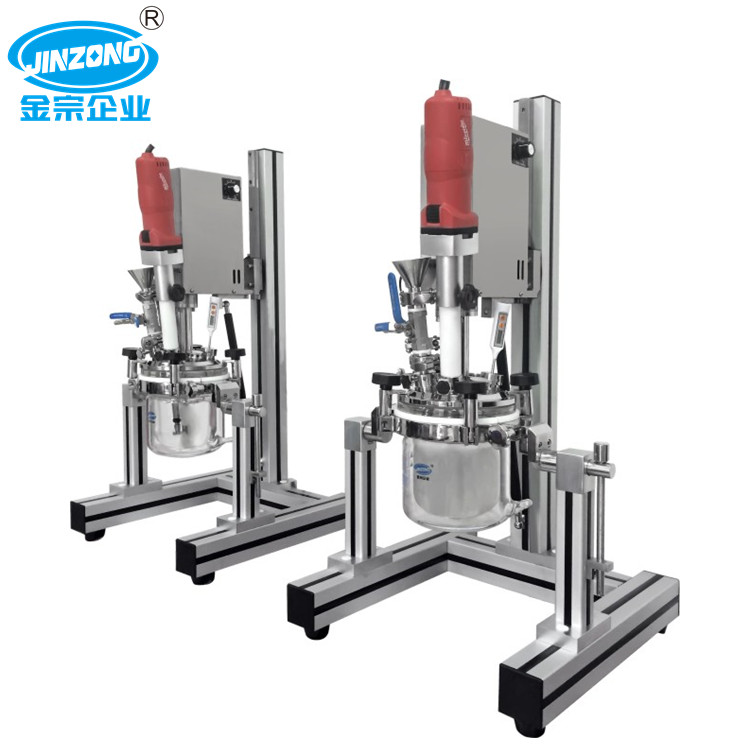

金宗实验室反应釜
产品介绍：

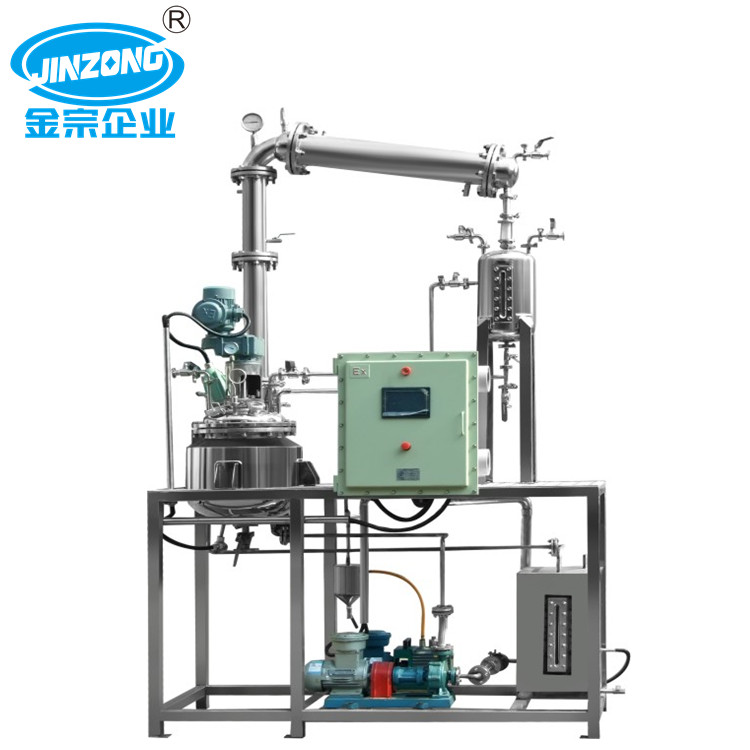

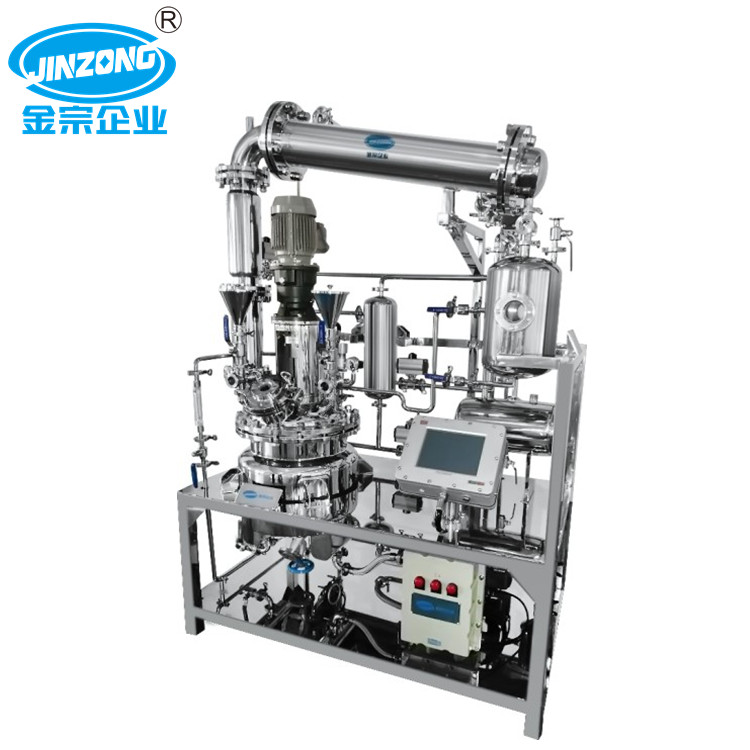

JZ系列树脂合成中试设备广泛应用于各种化工、涂料、树脂等行业实验室的工艺配方研发、中试、打板等。设备的主要配置基本参照大型生产装置设计，通用性较强，也可针对不同产品的研发灵活组合，是一款非常实用的实验室必备装置。
金宗企业为不同用户设计了手动控制和自动控制二种系列产品，JZ/M型为手动控制系列，JZ/A为自动控制系列，其中JZ/AS为半自动控制，JZ/AF为全自动控制，用户根据需要进行订购。
Production Description
JZ series resin synthesis polit-scale equipment is widely used in the process formulation research and development,polit-scale,sample making and so on in various chemical,paint,resin industry laboratories.The main confriguration of the equipment refers to the design of large-scale production equipment.It has strong versatility and can be flexibly combined for different product development.It is a very practical laboratory necessary device.
Jinzong Enterprice has designed two series products of manual control and automatic control for different control,JA/AF is automatic control,users can order according to their needs.
产品特性：
1. 真空上料、安全便捷；
2. 温控系统加热稳定可靠；
3. 自动控制系统按照工艺要求精确执行；
4. 主反应釜严格按照国家标准制作，安全可靠。
Products Characters
1. Vacuum feeding materials, safety and convenient;
2. The stable and reliable temperature heating & control system;
3. The automatic control system is accurately executed according to the process requirements;
4. The main reaction kettle is made in strict accordance with national standards, safety and reliable.
反应釜选型参考表：
Reactor Model
| 组成Composition | 说明Instructions |
| 规格（L）Specification | 10~50000（L） |
| 设计压力 Design Pressure(Mpa) | 常压或带压Atmospheric pressure or under pressure |
| 材质Material | 碳钢、不锈钢、搪瓷、石墨 Carbon steel,stainless steel,enamel,graphite |
| 加热方式Heating Forms | 夹套热载体电加热、外半管蒸汽加热、外半管导热油加热、热水加热、红外加热Electrical heating with medium in jacket,external half-pipe coil steam heating,external half-pipe conduction oil heating,hot water infrared heating,etc |
| 冷却方式 Cooling Forms | 夹套或内盘管冷媒冷却Refiigeration medium in the inneral pipe coil or jacket |
| 搅拌功率Blending Power | 根据物料粘稠度、液固比、液体比重、固体比重、固体颗粒度、转速、桨叶形式、有无固定挡流板或内盘管等因素来选型Model selection is made according to material viscosity,liquid-solid ratio,liquid specific gravity,solid specific gravity,solid granularity,rotation speed,paddle type,with or without baffle or internal coil |
| 搅拌桨叶形式Stirring Blade Forms | 锚式、框式、平浆式、斜浆式、螺带式、涡轮式、推进式、也可以多种形式复合Anchor type,frame type,flat paddle type,pitched paddle type,ribbon type,turbo type,pusher type and multiple compound type |
| 轴封 Seal | 机械密封或填料密封 Mechanical seal or stuff packing seal |
| 内表面处理Inner surface Treatment | 抛光和不抛光Polished or no polished |
| 出料阀门 Dishcarge Valve | 法兰式球阀、上、下展阀或其他阀门Flanged ball valves,open downward discharge valve and others |
| 工艺管口开孔Technological Pipe Hole | 人孔、视镜、蒸馏口、物料进口、压力表口、测温口、充N2口、出料口、热载体进口、冷却液进出口、测温口、取样口、排空口、以上根据工艺要求增加或减少Manhole,signhglass,distillation mouth,imported materials,pressure gauge port,temperature mouth,mouth filling N2,discharge nozzle,hot-carrier import,sample nozzle,pressure relief port,according to the process above requirements increase or discrease. |
技术参数
Technical Parameter
| 型号Model | 容积Reactor Volume(L) | 搅拌速度Mixing speed (rpm) | 加热面积Heat exchange surface (m2) | 分水器Separator(L) | 总功率Total power(including heating power)(KW) |
| JZ-10 | 10 | 0-84 | 0.5 | 5 | 6.37 |
| JZ-30 | 30 | 0.5 | 12 | 12.37 | |
| JZ-50 | 50 | 1 | 15 | 18.55 | |
| JZ-100 | 100 | 2 | 25 | 19.65 | |
| JZ-150 | 150 | 2.5 | 30 | 26.2 | |
| JZ-200 | 200 | 3 | 50 | 33.5 | |
| Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.This equipment is including: Reaction vessel, mixing system, vacuum system, condenser, separator, conduction oil preheating system, platform. |
智能工厂·金宗制造——金宗助力企业改善生产运营效率！
Intelligent Factory · Jinzong Manufacturing - Jinzong helps companies improve production & operation efficiency!
